COMBI SPORTS SKIRTING
PRODUCT INFORMATION
H 2.3
H 2.3

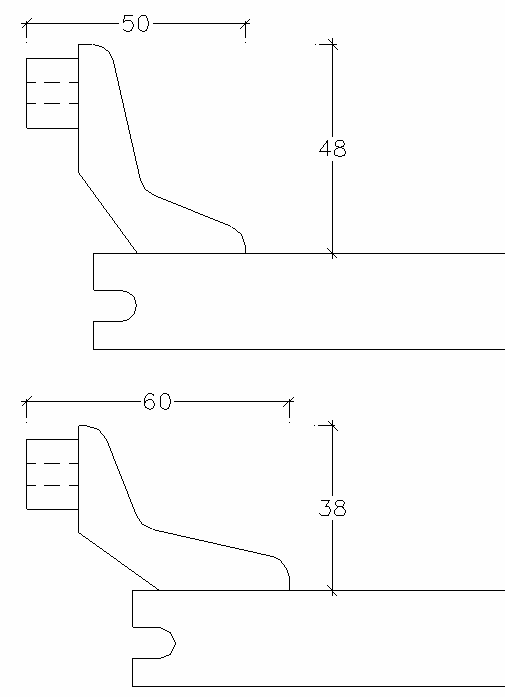

Fig. 1
GENERAL DESCRIPTION
Description:
Skirting for multiple use. Cover gaps between the floor and wall up to 40 mm. Installation with fittings for ventilating of the batten substructure in sports floors, or without fittings where ventilation is not required, e.g. at Clip floors.
Wood species: Available in Beech, Maple, Ash, Sylvaket and Oak, mat lacquered.
Size: 38 x 48 mm.
Fittings:
12 x 16 mm tubes in stainless steel. Fittings are installed every 380 mm.
Package size:
Skirting: 5 x 2.4 meter.
Fittings: 35 pcs. equivalent to 1 packet of skirtings.

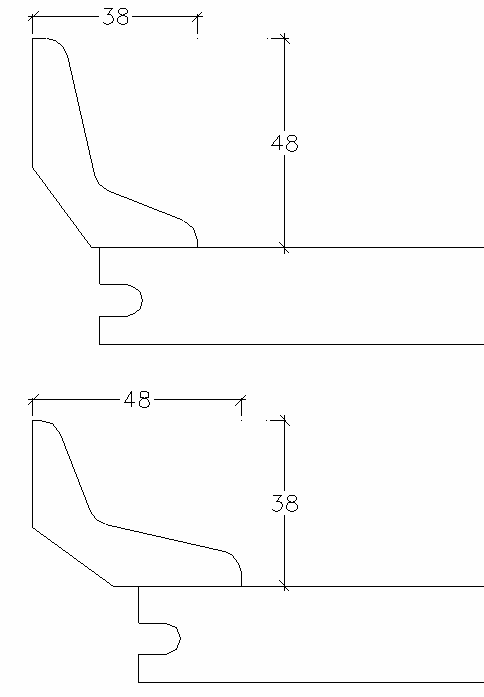

Fig. 2
INSTALLATION
The skirting can be installed in optional direction, see fig. 1 and 2.
Predrill and countersink holes to match screw option.
Use 7 fittings per skirting. Place fittings 60 mm from each end of each skirting, and for every 380 mm.
The foot of the skirting must lie flat and be in contact with the floor. End joints may be either butt jointed together or cut as a 45° mitre joint to enhance the visual effect of the joint.
Do not fix the skirting to the floor and ensure that the skirting is not exerting any downward pressure on the floor.
